Tweeter Mids Woofer

Bliesma

To our building proposals with Bliesma drivers.

Tweeter

open a bigger photo
Bliesma T25A-6

open a bigger photo

Bliesma T25A-6

order no. bliesma-t25a-6

EUR 172,55 excl. VAT: € 145.00 / $ 169.65

24 mm dome tweeter with aluminium dome.

frequency range = 1800-35000 Hz
resonance frequency fs = 870 Hz
impedance R = 6 Ohm
sound pressure level SPL = 92 dB (2,83V; 1m)
DC resistance Re = 5,2 Ohm
force factor BL = 2,6 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 5,7 cm²
effective mechanical mass incl. air load mms = 0,13 g
total Q factor Qts = 0,51 (Qms=1,35, Qes=0,82)
voice coil diameter = 24 mm
maximum peak linear excursion vibration x_lin = +/- 1 mm
mounting diameter d = 48 mm
overall diameter d = 68 mm
mounting depth (not countersunk) t = 26 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo
Bliesma T25B-6

open a bigger photo

Bliesma T25B-6

order no. bliesma-t25b-6

EUR 374,85 excl. VAT: € 315.00 / $ 368.55

24 mm dome tweeter with beryllium dome.

frequency range = 1800-40000 Hz
resonance frequency fs = 870 Hz
impedance R = 6 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 5,2 Ohm
force factor BL = 2,6 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 5,7 cm²
effective mechanical mass incl. air load mms = 0,11 g
total Q factor Qts = 0,51 (Qms=1,35, Qes=0,82)
voice coil diameter = 24 mm
maximum peak linear excursion vibration x_lin = +/- 1 mm
mounting diameter d = 48 mm
overall diameter d = 68 mm
mounting depth (not countersunk) t = 26 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo
Bliesma T25S-6

open a bigger photo

Bliesma T25S-6

order no. bliesma-t25s-6

EUR 172,55 excl. VAT: € 145.00 / $ 169.65

24 mm dome tweeter with fabric dome.

frequency range = 2200-22000 Hz
resonance frequency fs = 940 Hz
impedance R = 6 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
DC resistance Re = 5,2 Ohm
force factor BL = 2,6 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 5,7 cm²
effective mechanical mass incl. air load mms = 0,16 g
total Q factor Qts = 0,51 (Qms=1,35, Qes=0,82)
voice coil diameter = 24 mm
maximum peak linear excursion vibration x_lin = +/- 1 mm
mounting diameter d = 48 mm
overall diameter d = 68 mm
mounting depth (not countersunk) t = 23 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo
Bliesma T25T-6

open a bigger photo

Bliesma T25T-6

order no. bliesma-t25t-6

EUR 289,00 excl. VAT: € 242.86 / $ 284.14

24 mm dome tweeter with TeXtreme dome.

frequency range = 2200-30000 Hz
resonance frequency fs = 940 Hz
impedance R = 6 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
DC resistance Re = 5,2 Ohm
force factor BL = 2,6 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 5,7 cm²
effective mechanical mass incl. air load mms = 0,15 g
total Q factor Qts = 0,46 (Qms=1,31, Qes=0,71)
voice coil diameter = 24 mm
maximum peak linear excursion vibration x_lin = +/- 1 mm
mounting diameter d = 48 mm
overall diameter d = 68 mm
mounting depth (not countersunk) t = 23 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo
Bliesma T25D-6

open a bigger photo

Bliesma T25D-6

order no. bliesma-t25d-6

on request

24 mm dome tweeter with diamond dome.

frequency range = 2200-40000 Hz
resonance frequency fs = 870 Hz
impedance R = 6 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
DC resistance Re = 5,2 Ohm
force factor BL = 2,6 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 5,7 cm²
effective mechanical mass incl. air load mms = 0,15 g
total Q factor Qts = 0,51 (Qms=1,35, Qes=0,82)
voice coil diameter = 24 mm
maximum peak linear excursion vibration x_lin = +/- 1 mm
mounting diameter d = 48 mm
overall diameter d = 68 mm
mounting depth (not countersunk) t = 23 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo
Bliesma T34A-4

open a bigger photo

Bliesma T34A-4

order no. bliesma-t34a-4

EUR 341,53 excl. VAT: € 287.00 / $ 335.79

34 mm dome tweeter with aluminium dome.

frequency range = 1300-35000 Hz
resonance frequency fs = 790 Hz
impedance R = 4 Ohm
sound pressure level SPL = 96 dB (2,83V; 1m)
DC resistance Re = 3,3 Ohm
force factor BL = 3,5 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 10,5 cm²
effective mechanical mass incl. air load mms = 0,28 g
total Q factor Qts = 0,35 (Qms=2,1, Qes=0,42)
voice coil diameter = 34 mm
maximum peak linear excursion vibration x_lin = +/- 1,55 mm
mounting diameter d = 78 mm
overall diameter d = 104 mm
mounting depth (not countersunk) t = 29,5 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo
Bliesma T34B-4

open a bigger photo

Bliesma T34B-4

order no. bliesma-t34b-4

EUR 566,44 excl. VAT: € 476.00 / $ 556.92

34 mm dome tweeter with beryllium dome.

frequency range = 1300-40000 Hz
resonance frequency fs = 800 Hz
impedance R = 4 Ohm
sound pressure level SPL = 97,5 dB (2,83V; 1m)
DC resistance Re = 3,3 Ohm
force factor BL = 3,5 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 10,5 cm²
effective mechanical mass incl. air load mms = 0,26 g
total Q factor Qts = 0,35 (Qms=2,1, Qes=0,42)
voice coil diameter = 34 mm
maximum peak linear excursion vibration x_lin = +/- 1,55 mm
mounting diameter d = 78 mm
overall diameter d = 104 mm
mounting depth (not countersunk) t = 29,5 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

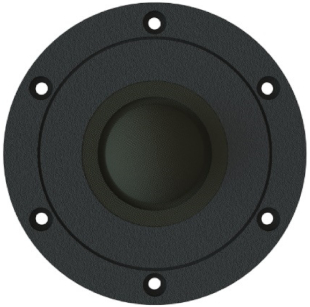

Bliesma T34S-4

order no. bliesma-t34s-4

EUR 341,53 excl. VAT: € 287.00 / $ 335.79

34 mm dome tweeter with fabric dome.

frequency range = 1300-22000 Hz
resonance frequency fs = 760 Hz
impedance R = 4 Ohm
sound pressure level SPL = 97 dB (2,83V; 1m)
DC resistance Re = 3,3 Ohm
force factor BL = 3,5 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 10,5 cm²
effective mechanical mass incl. air load mms = 0,27 g
total Q factor Qts = 0,27 (Qms=1,3, Qes=0,34)
voice coil diameter = 34 mm
maximum peak linear excursion vibration x_lin = +/- 1,55 mm
mounting diameter d = 78 mm
overall diameter d = 104 mm
mounting depth (not countersunk) t = 29,5 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

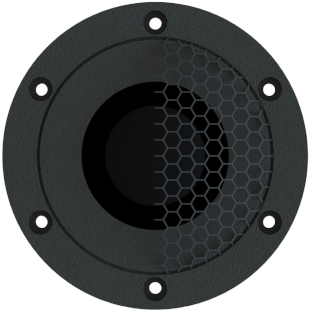

Bliesma T34T-4

order no. bliesma-t34t-4

EUR 464,00 excl. VAT: € 389.92 / $ 456.20

34 mm dome tweeter with TeXtreme dome.

frequency range = 1300-35000 Hz
resonance frequency fs = 770 Hz
impedance R = 4 Ohm
sound pressure level SPL = 96 dB (2,83V; 1m)
DC resistance Re = 3,3 Ohm
force factor BL = 3,5 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 10,5 cm²
effective mechanical mass incl. air load mms = 0,3 g
total Q factor Qts = 0,34 (Qms=1,95, Qes=0,41)
voice coil diameter = 34 mm
maximum peak linear excursion vibration x_lin = +/- 1,55 mm
mounting diameter d = 78 mm
overall diameter d = 104 mm
mounting depth (not countersunk) t = 29,5 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo
Bliesma T34D-4

open a bigger photo

Bliesma T34D-4

order no. bliesma-t34d-4

on request

34 mm dome tweeter with diamond dome.

frequency range = 1300-40000 Hz
resonance frequency fs = 710 Hz
impedance R = 4 Ohm
sound pressure level SPL = 96 dB (2,83V; 1m)
DC resistance Re = 3,3 Ohm
force factor BL = 3,5 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 10,5 cm²
effective mechanical mass incl. air load mms = 0,32 g
total Q factor Qts = 0,27 (Qms=1,22, Qes=0,35)
voice coil diameter = 34 mm
maximum peak linear excursion vibration x_lin = +/- 1,55 mm
mounting diameter d = 78 mm
overall diameter d = 104 mm
mounting depth (not countersunk) t = 29,5 mm

PDF data sheet

show kits to this chassis hide kits

Mids

open a bigger photo
Bliesma M74A-6

open a bigger photo

Bliesma M74A-6

order no. bliesma-m74a-6

EUR 419,00 excl. VAT: € 352.10 / $ 411.96

74 mm mids dome with aluminium dome.

frequency range = 400-6000 Hz
resonance frequency fs = 400 Hz
impedance R = 6 Ohm
sound pressure level SPL = 95 dB (2,83V; 1m)
DC resistance Re = 5,6 Ohm
force factor BL = 6,8 N/A
voice coil inductance L = 0,036 mH
effective piston radiating area Sd = 50,25 cm²
effective mechanical mass incl. air load mms = 2,3 g
total Q factor Qts = 0,67 (Qms=6,4, Qes=0,75)
voice coil diameter = 74 mm
maximum peak linear excursion vibration x_lin = +/- 1,2 mm
mounting diameter d = 100 mm
overall diameter d = 121 mm
mounting depth (not countersunk) t = 45 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo
Bliesma M74B-6

open a bigger photo

Bliesma M74B-6

order no. bliesma-m74b-6

EUR 1403,01 excl. VAT: € 1179.00 / $ 1379.43

74 mm mids dome with beryllium dome.

frequency range = 440-8000 Hz
resonance frequency fs = 440 Hz
impedance R = 6 Ohm
sound pressure level SPL = 97 dB (2,83V; 1m)
DC resistance Re = 5,6 Ohm
force factor BL = 6,8 N/A
voice coil inductance L = 0,036 mH
effective piston radiating area Sd = 50,25 cm²
effective mechanical mass incl. air load mms = 1,8 g
total Q factor Qts = 0,84 (Qms=7,6, Qes=0,94)
voice coil diameter = 74 mm
maximum peak linear excursion vibration x_lin = +/- 1,2 mm
mounting diameter d = 100 mm
overall diameter d = 121 mm
mounting depth (not countersunk) t = 45 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo
Bliesma M74S-6

open a bigger photo

Bliesma M74S-6

order no. bliesma-m74s-6

EUR 419,00 excl. VAT: € 352.10 / $ 411.96

74 mm mids dome with fabric dome.

frequency range = 425-4500 Hz
resonance frequency fs = 425 Hz
impedance R = 6 Ohm
sound pressure level SPL = 97 dB (2,83V; 1m)
DC resistance Re = 5,6 Ohm
force factor BL = 6,8 N/A
voice coil inductance L = 0,036 mH
effective piston radiating area Sd = 50,25 cm²
effective mechanical mass incl. air load mms = 2 g
total Q factor Qts = 0,62 (Qms=6,6, Qes=0,68)
voice coil diameter = 74 mm
maximum peak linear excursion vibration x_lin = +/- 1,2 mm
mounting diameter d = 100 mm
overall diameter d = 121 mm
mounting depth (not countersunk) t = 45 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

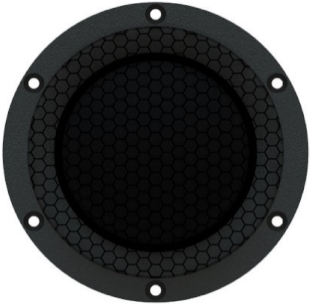

Bliesma M74T-6

order no. bliesma-m74t-6

EUR 593,81 excl. VAT: € 499.00 / $ 583.83

74 mm mids dome with TeXtreme dome.

frequency range = 415-6000 Hz
resonance frequency fs = 415 Hz
impedance R = 6 Ohm
sound pressure level SPL = 95,5 dB (2,83V; 1m)
DC resistance Re = 5,6 Ohm
force factor BL = 6,8 N/A
voice coil inductance L = 0,036 mH
effective piston radiating area Sd = 50,25 cm²
effective mechanical mass incl. air load mms = 2,1 g
total Q factor Qts = 0,6 (Qms=7,8, Qes=0,65)
voice coil diameter = 74 mm
maximum peak linear excursion vibration x_lin = +/- 1,2 mm
mounting diameter d = 100 mm
overall diameter d = 121 mm
mounting depth (not countersunk) t = 45 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo
Bliesma M74P-6

open a bigger photo

Bliesma M74P-6

order no. bliesma-m74p-6

EUR 419,00 excl. VAT: € 352.10 / $ 411.96

74 mm mids dome with paper dome.

frequency range = 400-4500 Hz
resonance frequency fs = 400 Hz
impedance R = 6 Ohm
sound pressure level SPL = 95 dB (2,83V; 1m)
DC resistance Re = 5,6 Ohm
force factor BL = 6,8 N/A
voice coil inductance L = 0,036 mH
effective piston radiating area Sd = 50,25 cm²
effective mechanical mass incl. air load mms = 2,3 g
total Q factor Qts = 0,5 (Qms=3, Qes=0,6)
voice coil diameter = 74 mm
maximum peak linear excursion vibration x_lin = +/- 1,2 mm
mounting diameter d = 100 mm
overall diameter d = 121 mm
mounting depth (not countersunk) t = 45 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo
Bliesma M142A-6

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,4 L volume
from 173/109 Hz (-3dB/-8dB)

recommended cabinet 2:
10 L volume bass reflex cabinet
with HP70 reflex tube, 9 cm long.
from 96/73 Hz (-3dB/-8dB).

Bliesma M142A-6

order no. bliesma-m142a-6

EUR 1045,00 excl. VAT: € 878.15 / $ 1027.44

137 mm mids dome with aluminium dome.

frequency range = 180-2800 Hz
resonance frequency fs = 65 Hz
impedance R = 6 Ohm
sound pressure level SPL = 94,5 dB (2,83V; 1m)
DC resistance Re = 5,4 Ohm
force factor BL = 8,8 N/A
voice coil inductance L = 0,03 mH
effective piston radiating area Sd = 180,3 cm²
effective mechanical mass incl. air load mms = 11 g
equivalent volume of compliance Vas = 24,6 l
total Q factor Qts = 0,3 (Qms=8,3, Qes=0,31)
voice coil diameter = 137 mm
maximum peak linear excursion vibration x_lin = +/- 1,85 mm
mounting diameter d = 158 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 47,8 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo
Bliesma M142P-6

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,6 L volume
from 162/102 Hz (-3dB/-8dB)

recommended cabinet 2:
11,1 L volume bass reflex cabinet
with HP70 reflex tube, 9 cm long.
from 89/68 Hz (-3dB/-8dB).

Bliesma M142P-6

order no. bliesma-m142p-6

EUR 1045,00 excl. VAT: € 878.15 / $ 1027.44

137 mm mids dome with paper dome.

frequency range = 180-2200 Hz
resonance frequency fs = 63 Hz
impedance R = 6 Ohm
sound pressure level SPL = 94 dB (2,83V; 1m)
DC resistance Re = 5,4 Ohm
force factor BL = 8,8 N/A
voice coil inductance L = 0,03 mH
effective piston radiating area Sd = 180,3 cm²
effective mechanical mass incl. air load mms = 11,7 g
equivalent volume of compliance Vas = 24,6 l
total Q factor Qts = 0,31 (Qms=7,3, Qes=0,32)
voice coil diameter = 137 mm
maximum peak linear excursion vibration x_lin = +/- 1,85 mm
mounting diameter d = 158 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 47,8 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo
Bliesma M142T-6

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,4 L volume
from 175/111 Hz (-3dB/-8dB)

recommended cabinet 2:
10 L volume bass reflex cabinet
with HP70 reflex tube, 9 cm long.
from 97/74 Hz (-3dB/-8dB).

Bliesma M142T-6

order no. bliesma-m142t-6

EUR 1249,50 excl. VAT: € 1050.00 / $ 1228.50

137 mm mids dome with TeXtreme dome.

frequency range = 180-2800 Hz
resonance frequency fs = 66 Hz
impedance R = 6 Ohm
sound pressure level SPL = 94,5 dB (2,83V; 1m)
DC resistance Re = 5,4 Ohm
force factor BL = 8,8 N/A
voice coil inductance L = 0,03 mH
effective piston radiating area Sd = 180,3 cm²
effective mechanical mass incl. air load mms = 10,9 g
equivalent volume of compliance Vas = 24,6 l
total Q factor Qts = 0,3 (Qms=9,2, Qes=0,31)
voice coil diameter = 137 mm
maximum peak linear excursion vibration x_lin = +/- 1,85 mm
mounting diameter d = 158 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 47,8 mm

PDF data sheet

show kits to this chassis hide kits

Woofer

open a bigger photo

recommended cabinet 1:
closed cabinet with 10,5 L volume
from 65/41 Hz (-3dB/-8dB)

recommended cabinet 2:
39 L volume bass reflex cabinet
with HP70 reflex tube, 20 cm long.
from 33/26 Hz (-3dB/-8dB).

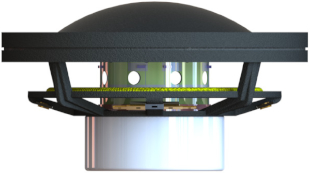

Bliesma W137A-854

order no. bliesma-w137a-854

EUR 506,00 excl. VAT: € 425.21 / $ 497.50

bass-midrange driver with aluminium cone.

frequency range = 31,5-2200 Hz
resonance frequency fs = 31,5 Hz
impedance R = 8 Ohm
sound pressure level SPL = 85 dB (2,83V; 1m)
DC resistance Re = 7,8 Ohm
force factor BL = 10 N/A
voice coil inductance L = 0,13 mH
effective piston radiating area Sd = 175 cm²
effective mechanical mass incl. air load mms = 27,1 g
equivalent volume of compliance Vas = 40,9 l
total Q factor Qts = 0,39 (Qms=7,12, Qes=0,41)
voice coil diameter = 64 mm
maximum peak linear excursion vibration x_lin = +/- 7,5 mm
mounting diameter d = 158 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 81 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 18 L volume
from 54/34 Hz (-3dB/-8dB)

recommended cabinet 2:
71 L volume bass reflex cabinet
with HP70 reflex tube, 14 cm long.
from 26/21 Hz (-3dB/-8dB).

Bliesma W137A-854

order no. bliesma-w137a-854

EUR 506,00 excl. VAT: € 425.21 / $ 497.50

bass-midrange driver with aluminium cone.

frequency range = 31,5-2200 Hz
resonance frequency fs = 31,5 Hz
impedance R = 5 Ohm
sound pressure level SPL = 87,5 dB (2,83V; 1m)
DC resistance Re = 4 Ohm
force factor BL = 6,7 N/A
voice coil inductance L = 0,06 mH
effective piston radiating area Sd = 175 cm²
effective mechanical mass incl. air load mms = 27,1 g
equivalent volume of compliance Vas = 40,9 l
total Q factor Qts = 0,45 (Qms=7,25, Qes=0,48)
voice coil diameter = 64 mm
maximum peak linear excursion vibration x_lin = +/- 7,5 mm
mounting diameter d = 158 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 81 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 12 L volume
from 62/39 Hz (-3dB/-8dB)

recommended cabinet 2:
46 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 30/25 Hz (-3dB/-8dB).

Bliesma W137A-854

order no. bliesma-w137a-854

EUR 506,00 excl. VAT: € 425.21 / $ 497.50

bass-midrange driver with aluminium cone.

frequency range = 31,5-2200 Hz
resonance frequency fs = 31,5 Hz
impedance R = 4 Ohm
sound pressure level SPL = 88 dB (2,83V; 1m)
DC resistance Re = 3,4 Ohm
force factor BL = 6,7 N/A
voice coil inductance L = 0,06 mH
effective piston radiating area Sd = 175 cm²
effective mechanical mass incl. air load mms = 27,1 g
equivalent volume of compliance Vas = 40,9 l
total Q factor Qts = 0,39 (Qms=7,35, Qes=0,41)
voice coil diameter = 64 mm
maximum peak linear excursion vibration x_lin = +/- 7,5 mm
mounting diameter d = 158 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 81 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 9,9 L volume
from 67/42 Hz (-3dB/-8dB)

recommended cabinet 2:
36 L volume bass reflex cabinet
with HP70 reflex tube, 20 cm long.
from 34/27 Hz (-3dB/-8dB).

Bliesma W137P-854

order no. bliesma-w137p-854

EUR 506,00 excl. VAT: € 425.21 / $ 497.50

bass-midrange driver with paper cone.

frequency range = 31,5-1800 Hz
resonance frequency fs = 31,8 Hz
impedance R = 8 Ohm
sound pressure level SPL = 86 dB (2,83V; 1m)
DC resistance Re = 7,8 Ohm
force factor BL = 10 N/A
voice coil inductance L = 0,13 mH
effective piston radiating area Sd = 175 cm²
effective mechanical mass incl. air load mms = 26,2 g
equivalent volume of compliance Vas = 40,9 l
total Q factor Qts = 0,38 (Qms=7,12, Qes=0,4)
voice coil diameter = 64 mm
maximum peak linear excursion vibration x_lin = +/- 7,5 mm
mounting diameter d = 158 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 81 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 16 L volume
from 56/35 Hz (-3dB/-8dB)

recommended cabinet 2:
66 L volume bass reflex cabinet
with HP70 reflex tube, 14 cm long.
from 26/22 Hz (-3dB/-8dB).

Bliesma W137P-854

order no. bliesma-w137p-854

EUR 506,00 excl. VAT: € 425.21 / $ 497.50

bass-midrange driver with paper cone.

frequency range = 31,5-1800 Hz
resonance frequency fs = 31,8 Hz
impedance R = 5 Ohm
sound pressure level SPL = 88 dB (2,83V; 1m)
DC resistance Re = 4 Ohm
force factor BL = 6,7 N/A
voice coil inductance L = 0,06 mH
effective piston radiating area Sd = 175 cm²
effective mechanical mass incl. air load mms = 26,2 g
equivalent volume of compliance Vas = 40,9 l
total Q factor Qts = 0,44 (Qms=7,25, Qes=0,47)
voice coil diameter = 64 mm
maximum peak linear excursion vibration x_lin = +/- 7,5 mm
mounting diameter d = 158 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 81 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 11,2 L volume
from 64/40 Hz (-3dB/-8dB)

recommended cabinet 2:
42 L volume bass reflex cabinet
with HP70 reflex tube, 19 cm long.
from 32/26 Hz (-3dB/-8dB).

Bliesma W137P-854

order no. bliesma-w137p-854

EUR 506,00 excl. VAT: € 425.21 / $ 497.50

bass-midrange driver with paper cone.

frequency range = 31,5-1800 Hz
resonance frequency fs = 31,8 Hz
impedance R = 4 Ohm
sound pressure level SPL = 88 dB (2,83V; 1m)
DC resistance Re = 3,4 Ohm
force factor BL = 6,7 N/A
voice coil inductance L = 0,06 mH
effective piston radiating area Sd = 175 cm²
effective mechanical mass incl. air load mms = 26,2 g
equivalent volume of compliance Vas = 40,9 l
total Q factor Qts = 0,38 (Qms=7,35, Qes=0,4)
voice coil diameter = 64 mm
maximum peak linear excursion vibration x_lin = +/- 7,5 mm
mounting diameter d = 158 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 81 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 9,9 L volume
from 68/43 Hz (-3dB/-8dB)

recommended cabinet 2:
37 L volume bass reflex cabinet
with HP70 reflex tube, 19 cm long.
from 34/27 Hz (-3dB/-8dB).

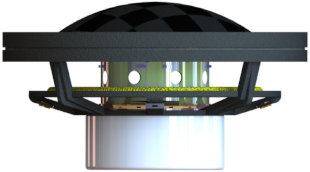

Bliesma W137T-854

order no. bliesma-w137t-854

EUR 797,30 excl. VAT: € 670.00 / $ 783.90

bass-midrange driver with TeXtreme cone.

frequency range = 33,8-2800 Hz
resonance frequency fs = 33,8 Hz
impedance R = 8 Ohm
sound pressure level SPL = 84 dB (2,83V; 1m)
DC resistance Re = 7,5 Ohm
force factor BL = 10 N/A
voice coil inductance L = 0,13 mH
effective piston radiating area Sd = 175 cm²
effective mechanical mass incl. air load mms = 26,36 g
equivalent volume of compliance Vas = 35,9 l
total Q factor Qts = 0,39 (Qms=8,7, Qes=0,41)
voice coil diameter = 64 mm
maximum peak linear excursion vibration x_lin = +/- 7,5 mm
mounting diameter d = 158 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 81 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 13,6 L volume
from 61/38 Hz (-3dB/-8dB)

recommended cabinet 2:
54 L volume bass reflex cabinet
with HP70 reflex tube, 15 cm long.
from 29/24 Hz (-3dB/-8dB).

Bliesma W137T-854

order no. bliesma-w137t-854

EUR 797,30 excl. VAT: € 670.00 / $ 783.90

bass-midrange driver with TeXtreme cone.

frequency range = 31,5-1800 Hz
resonance frequency fs = 33,8 Hz
impedance R = 5 Ohm
sound pressure level SPL = 87 dB (2,83V; 1m)
DC resistance Re = 3,8 Ohm
force factor BL = 6,8 N/A
voice coil inductance L = 0,06 mH
effective piston radiating area Sd = 175 cm²
effective mechanical mass incl. air load mms = 26,36 g
equivalent volume of compliance Vas = 35,9 l
total Q factor Qts = 0,44 (Qms=8,3, Qes=0,46)
voice coil diameter = 64 mm
maximum peak linear excursion vibration x_lin = +/- 7,5 mm
mounting diameter d = 158 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 81 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 9,2 L volume
from 70/44 Hz (-3dB/-8dB)

recommended cabinet 2:
34 L volume bass reflex cabinet
with HP70 reflex tube, 20 cm long.
from 35/28 Hz (-3dB/-8dB).

Bliesma W137T-854

order no. bliesma-w137t-854

EUR 797,30 excl. VAT: € 670.00 / $ 783.90

bass-midrange driver with TeXtreme cone.

frequency range = 31,5-1800 Hz
resonance frequency fs = 33,8 Hz
impedance R = 4 Ohm
sound pressure level SPL = 87,5 dB (2,83V; 1m)
DC resistance Re = 3,3 Ohm
force factor BL = 6,7 N/A
voice coil inductance L = 0,06 mH
effective piston radiating area Sd = 175 cm²
effective mechanical mass incl. air load mms = 26,36 g
equivalent volume of compliance Vas = 35,9 l
total Q factor Qts = 0,38 (Qms=6,7, Qes=0,4)
voice coil diameter = 64 mm
maximum peak linear excursion vibration x_lin = +/- 7,5 mm
mounting diameter d = 158 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 81 mm

PDF data sheet

show kits to this chassis hide kits

Tweeter Mids Woofer

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.
